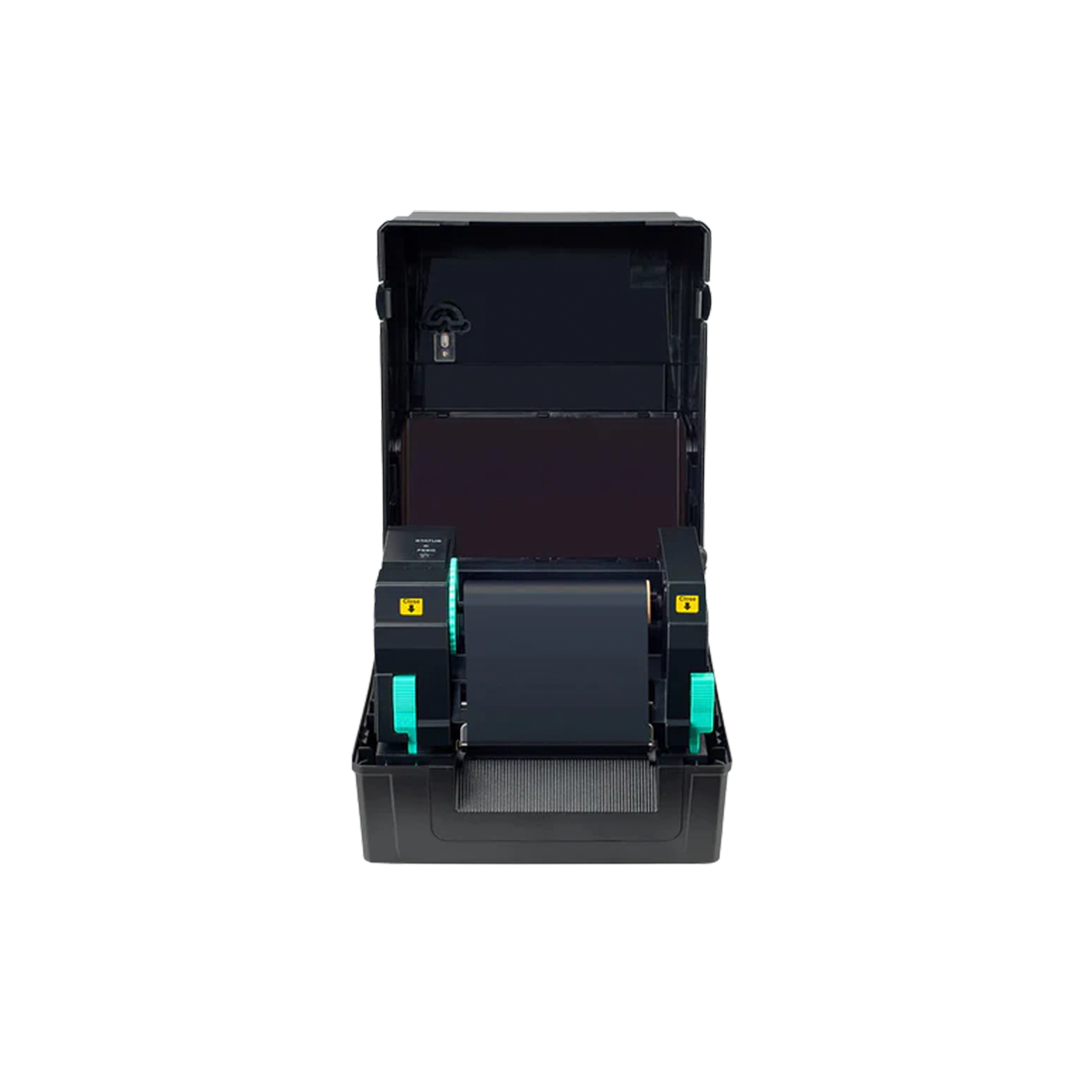

Buvvas TT426B Thermal Transfer Label Printer

Printing Parameter

Product Model : TT426B

Printing method : Thermal Transfer / Direct

ThermalResolution : 203 DPI
Print speed : 127 mm/s Max.

Print Width :108 mm (4.25")
Print Length : 1778 mm (70")

Media
Media type :Continuous, gap, black mark, fan-fold and punched hole
Ribbon capacity : Max.300m
Label roll capacity : 127 mm (5“) OD (External diameter)
Label length : 10 - 1778 mm(0.39" ~ 70" )
Media core diameter :25.4 ~ 76.2 mm (1 "~ 3 ")
Media thickness :0.06~0.254 mm (2.36~10mil

Ribbon width : 110 mm
Ribbon core inner diameter : 25.4 mm (1")

Physical Features

Dimension 299 mm (D) x 235 mm (W) x 198.3 mm (H)
Weight : 2.55kg

Reliability : Print head life 30 km

Software
Drivers : Windows/Linux/Mac
SDK : Windows/Android/iOS
Power supply

AC : 110-240V,1.8A, 50-60Hz Input

Output DC 24V, 2.5A, 60W
Options

Factory Options :
① Built-in Ethernet server (10/100 Mbps);
② RS-232C (2400-115200 bps) communication interface;
③ Cutter ④ Peeling machine ⑤ Bluetooth module ⑥ WiFi module

Performance Features
Processor : 32-bit CPU
Memory : 8MB Flash Memory/ 8MB SDRAM/ Flash memory can be expanded Max.4Gb

Interface Stardard version: USB Optional:Lan/WIFI/Bluetooth/TF card

Sensors
①Gap sensor
②Cover opening sensor
③Black mark sensor
④Ribbon sensor

Fonts/Graphics/Symbologies
Internal fonts : 8 alpha-numeric bitmap fonts, Windows fonts are downloadable
from software.

1D barcode : Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar,
Interleaved 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5)
digits add-on, MSI, PLESSEY, POSTNET, China POST
2D barcode : PDF-417, Maxicode, DataMatrix, QR code, Aztec
Rotation 0°、90°、180°、270°
Emulation TSPL、EPL、ZPL、DPL

Environmental Conditions

Operation environment : 5 ~ 40°C（41~104°F），Humidity: 25 ~ 85% non-condensing
Storage environment : -40 ~ 60°C（-40~140°F），Humidity:10 ~ 90% non-conde

Dealer Options :

①External paper roll holder and 1 "paper roll;
②Extension board for external paper roll holder
